Portable Meters - Small Meters/Dosimetry

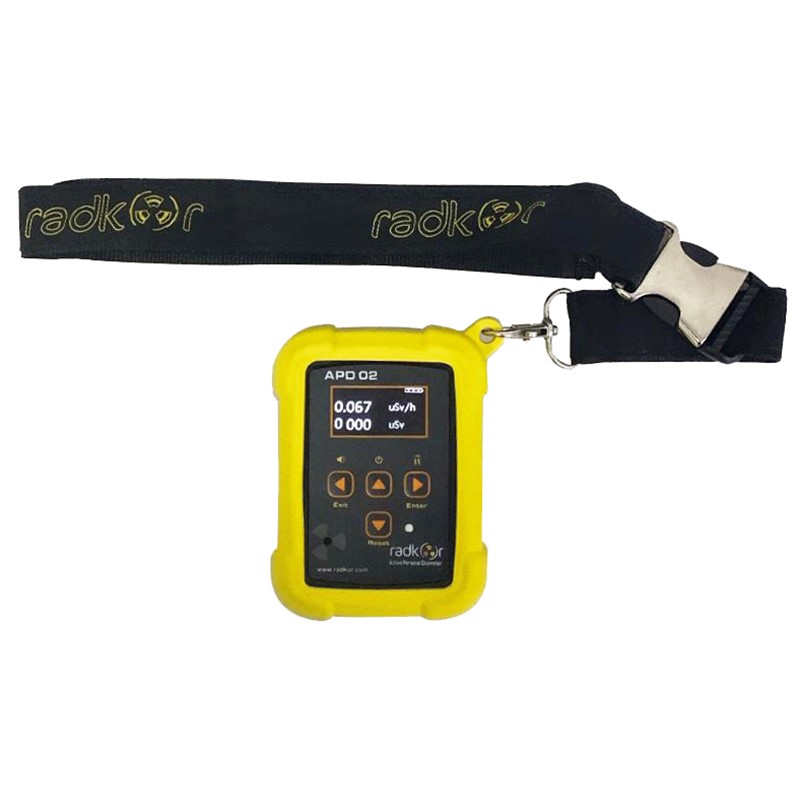

APD Series
Features
1. Geiger Muller Based Electronic Dosimeter
1) APD - 01 : 0.1 µSv/h – 100.0 mSv/h
2) APD - 02 : 0.1 µSv/h – 10.0 mSv/h
2. Common
1) Detector : Energy Compensated Geiger Müller Tube
2) Radiation Type : X-Ray (continuous) and gamma radiation, Hp(10) measurement
3) Dose Rate Measurement Accuracy : Deviation in the range of -17%, +25% according to ISO/IEC 61526
4) Energy Range : 30 keV – 3.0 MeV according to ISO/IEC 61526
5) Unit of Dose : Sv
6) Unit of Dose Rate : Sv/h
7) Display : 1.3 inch 128 x 64 OLED Screen
8) Alarm Types : Visual, audible, vibrating
9) Operating Temperature : -20 °C to 50 °C
10) Dimensions : 9.33 cm x 6.75 cm x 3.29 cm
11) Weight : 125 gr
