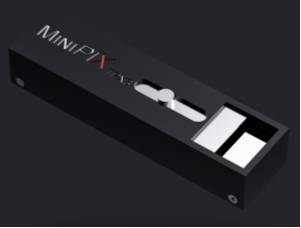

A miniaturized and low-power radiation camera equipped with particle tracking and imaging detector Timepix3 (256 x 256 square pixels with a pitch of 55 μm). Several sensor materials are provided according to customer preference.

1.  Sensor Material : Si or CdTe
2.  Sensor Thickness : 100 μm, 300 μm and 500 μm for Si; 1 mm CdTe
3.  Sensitive Area :    14 mm x 14 mm
4.  Time Resolution : 1.6 ns
5.  Readout Speed : 2.35 Million hits/s
6.  Frame rate : 16 fps
7.  Number of Pixels : 256 x 256
8.  Pixel Pitch : 55 μm
9.  Energy Resolution (σ @ 60 keV) : 1.2-3.6 keV (Si) a 2.8-8.3 (CdTe)
10.  Min Detectable Energy :    3 keV (Si) and 5 keV (CdTe)
