Portable Meters - Neutron Meters

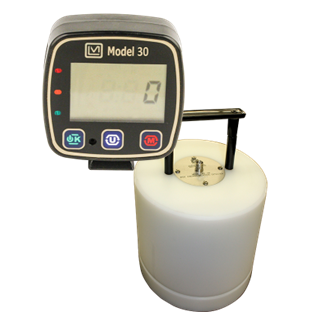

Model 30 + 42-38 WENDI-2
Features
1. Digital Survey Meter
1) Attaches to Detector Allowing One-Handed Operation
2) Large Backlit Auto-Ranging LCD with Adjustable Viewing Angle
3) Simple Green, Yellow, and Red Status Indicators
4) 3-Button Intuitive Interface for Easy Operation
5) USB Port and All-Digital Calibration
2. Wide Energy Neutron Detector
1) 2 atm 3He tube
2) Moderator : Polyethylene cylinder, 22.9 x 21.2 cm (9 x 8.36 in.) (D x L)
3) Detection Range : Thermal to approximately 5 GeV
4) Energy Response : 0.1 MeV to 5 GeV, closely follows the radiation protection guide curve for neutron dose
5) Sensitivity (241AmBe fast neutrons) : 450 cpm per mrem/hr
6) Gamma Rejection (137Cs) : 10 cpm or less through 100 mSv/h (10 R/hr)
