Monitoring Systems - Area Monitor

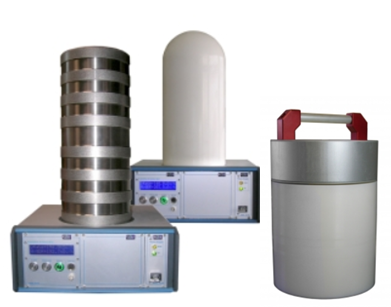

NAUSICAA/ LUPIN
Features
1. NAUSICAA is an ion-chamber-based gamma radiation monitoring unit, available in two versions: IC-T for environmental measurements (9 decades electrometer) and IC-T-PF for pulsed field measurements (7 decades electrometer).
1) Extremely high reliability
2) Highest sensitiviy available on the market
3) Extremely stable response
4) Pressurized ion chamber detector
5) Measurement range: 10 nSv/h ÷ 10 Sv/h or 10 nSv/h ÷ 100 mSv/h
6) Energy range: 30 keV ÷ 10 MeV
2. LUPIN BF3-NP is an environmental monitoring unit for neutron H*(10) measurements, with unique excellent performance for neutron detection in pulsed fields.
1) Only detector worldwide efficiently working in PF
2) Modular electronics, high sensitivity
3) Fully customizable for specific requirements
4) From thermal up to 10 GeV or up to 20 MeV (LITE)
5) Energy response fitting ICRP74 conversion curve
6) Max H*(10) per burst in pulsed fields: 2 µSv
7) Excellent gamma rejection (< 0.5 µSv/h @ 50 mSv/h)
